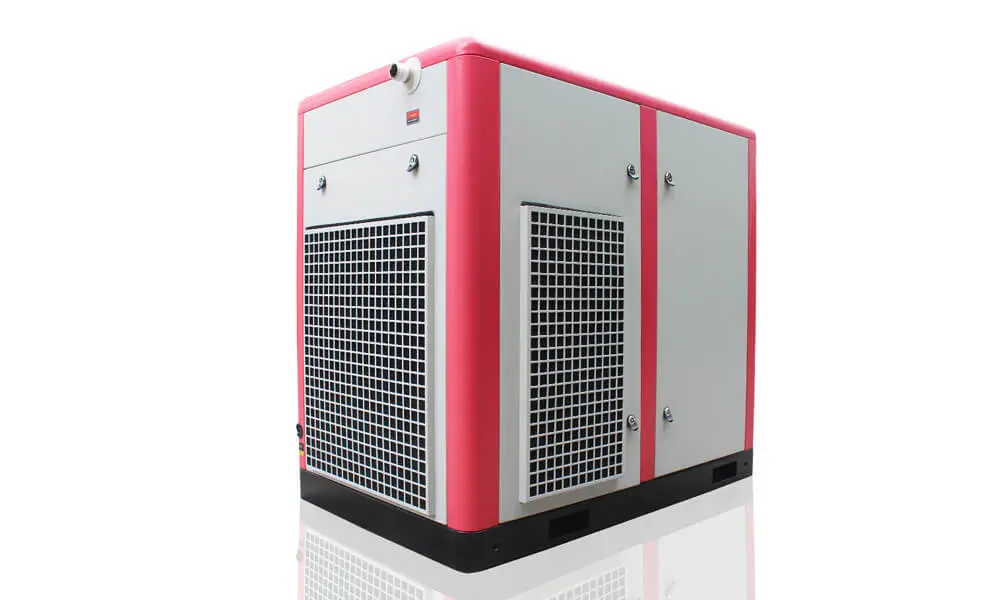

Direct Driven Screw Air Compressor Series
Capacity: 3.8.~102.0 m3/min
Motor Power: 22~560kw (Horse Power : 30~175 SA)
Description
Configuration Characteristics

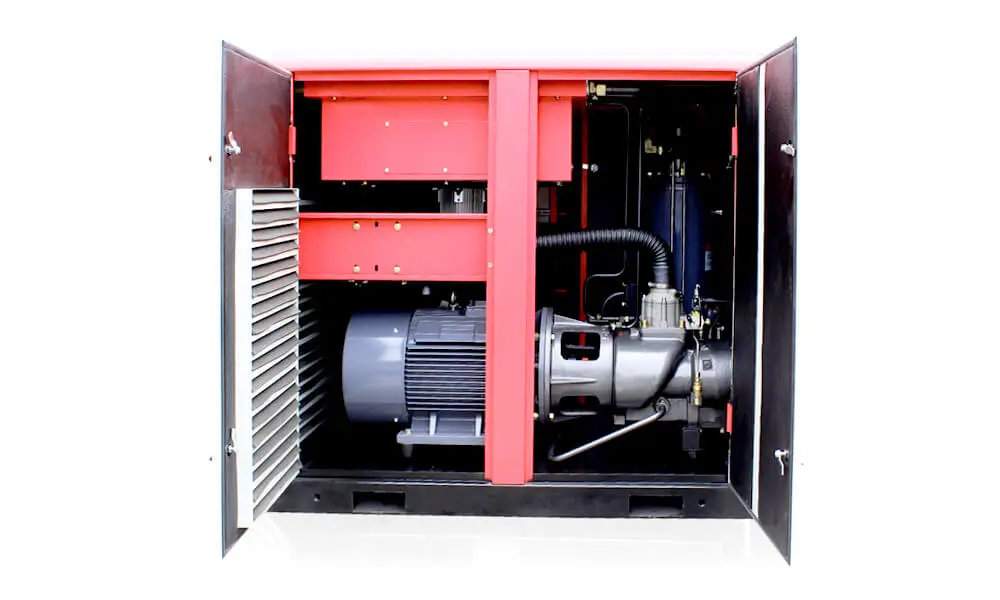

> 1. A precisely-made central bracket is used to keep the motor aligned permanently with the compressor air end
>2. A highly resilient coupling is adopted to make the compressor
operato smoothly, and the elastomer is long in useful life.
› 3. The discharge pipe is double-wall corrugated pipe,and the oilway uses a special high-pressure hose which is resistant to temperature up to 125 °C
› 4. For the extremely high temperature conditions in some districts, the large-area plate heat exchanger and high-efficiency water chiller are used.
High-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into an involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise.
Reliability
Since no wearing parts are used for the double-screw compressor air end it can operate for up to 40,000 -80,000 hours between failure if well maintained.
